CRANE® Ornate III Cast Iron Radiators – 970mm

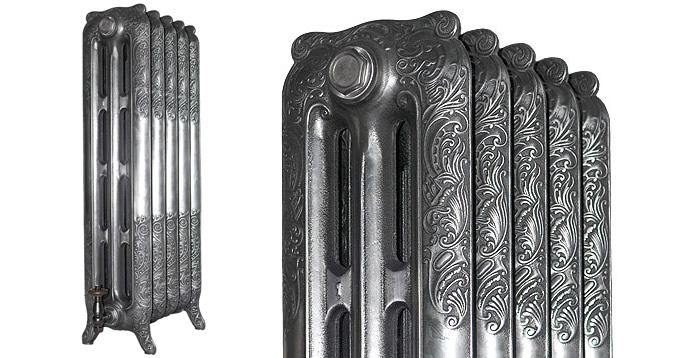

  • Top of CRANE Ornate III 970mm Cast Iron Radiators

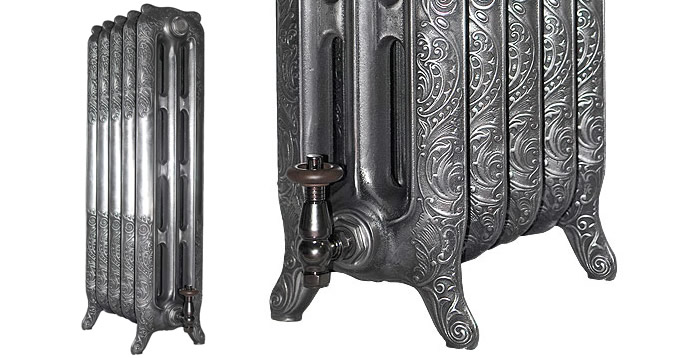

  • Legs of CRANE Ornate III 970mm Cast Iron Radiators

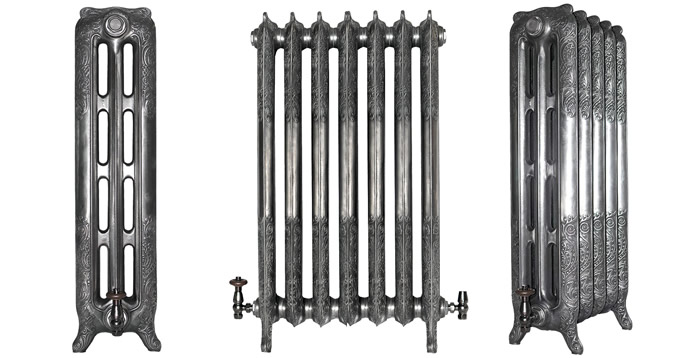

  • Profile of CRANE Ornate III 970mm Cast Iron Radiators
Description

Cast iron radiators from the CRANE® Ornate III series are available in two complementary heights. The tall 970mm (38 inch) Ornate III is the high-output option — chosen when you want maximum performance without compromising on period style.

The Ornate III casting features elegant Edwardian-era decoration with crisp, detailed moulding. Stylised foliage flows from the centre of each section down to the feet and across the shoulders, creating a distinctive silhouette that looks at home in grand properties and refined contemporary interiors alike.

All CRANE® radiators are assembled and pressure tested in the United Kingdom and supplied with a Lifetime Guarantee.

Customisation and Finishes
Sanderson Paint

CRANE® Cast Iron Radiators are cast in Europe and assembled and finished at our UK facility.

Choose from any RAL colour, a wide range of specialist painted finishes, or a polished finish from satin to near mirror.

Technical Data
CRANE Ornate III 970mm cast iron radiators diagram
Section Height A961mm
BTU's per section775
Watts per section227
Radiator Depth B225mm
Section Length C76mm
Carbon (C)3.40%-3.85%
Silicon (Si)1.80%-2.10%
Sulfur (S)<0.06%
Phosphorus (P)<0.10%
Manganese (Mn)0.40%-0.85%
Chromium (Cr)<0.07%
Copper (Cu)<0.08%
Tensile Variance<0.01%
Section Width Tolerance<0.1%
Section Height Tolerance<0.1%
Section Perpendicular Tolerance<0.1%
Ferrite Microstructure %<0.190%
Peralite Microstructure %<0.190%
Cementite Microstructure %<0.190%
Nodule Microstructure adet/mm100-125
Nodule Maximum size Q/mm8
Micro Nodularity %80% +
Hardness (HB)150-250
Tensile Strength N/mm400 +
Elongation3+
Sand Tempreture on Casting20°c-45°c
Casting Humidity3.2%-4.0%
Wet Compressive Strength2100-2500gr/cm sq
Tensile Strength20-30gr/cm sq
Shatter Index67-77%
Volatile Inclusions<0.001%

All cast iron radiator sections are tested for vertical and horizontal tolerances.
Specification Table

CRANE Ornate III 970mm Cast Iron Radiators

Radiator Height:

961mm

(37 7/8 “)

Radiator Depth:

225mm

(8 7/8 “)

ProductSections Radiator Width (L) Heat Output (ΔT=50) Heat Output (ΔT=60)
Code(No.) mmInches WattsBTU's WattsBTU's
CRC-970-033258mm10 1/8 “537 Watts1833 BTU's681 Watts2325 BTU's
CRC-970-044334mm13 1/8 “716 Watts2444 BTU's908 Watts3100 BTU's
CRC-970-055410mm16 1/8 “895 Watts3055 BTU's1135 Watts3875 BTU's
CRC-970-066486mm19 1/8 “1074 Watts3666 BTU's1362 Watts4650 BTU's
CRC-970-077562mm22 1/8 “1253 Watts4277 BTU's1589 Watts5425 BTU's
CRC-970-088638mm25 1/8 “1432 Watts4888 BTU's1816 Watts6200 BTU's
CRC-970-099714mm28 1/8 “1611 Watts5499 BTU's2043 Watts6975 BTU's
CRC-970-1010790mm31 1/8 “1790 Watts6110 BTU's2270 Watts7750 BTU's
CRC-970-1111866mm34 1/8 “1969 Watts6721 BTU's2497 Watts8525 BTU's
CRC-970-1212942mm37 1/8 “2148 Watts7332 BTU's2724 Watts9300 BTU's
CRC-970-13131018mm40 1/8 “2327 Watts7943 BTU's2951 Watts10075 BTU's
CRC-970-14141094mm43 1/8 “2506 Watts8554 BTU's3178 Watts10850 BTU's
CRC-970-15151170mm46 1/8 “2685 Watts9165 BTU's3405 Watts11625 BTU's
CRC-970-16161246mm49 “2864 Watts9776 BTU's3632 Watts12400 BTU's
CRC-970-17171322mm52 “3043 Watts10387 BTU's3859 Watts13175 BTU's
CRC-970-18181398mm55 “3222 Watts10998 BTU's4086 Watts13950 BTU's
CRC-970-19191474mm58 “3401 Watts11609 BTU's4313 Watts14725 BTU's
CRC-970-20201550mm61 “3580 Watts12220 BTU's4540 Watts15500 BTU's
CRC-970-21211626mm64 “3759 Watts12831 BTU's4767 Watts16275 BTU's
CRC-970-22221702mm67 “3938 Watts13442 BTU's4994 Watts17050 BTU's
CRC-970-23231778mm70 “4117 Watts14053 BTU's5221 Watts17825 BTU's
CRC-970-24241854mm73 “4296 Watts14664 BTU's5448 Watts18600 BTU's
CRC-970-25251930mm76 “4475 Watts15275 BTU's5675 Watts19375 BTU's
CRC-970-26262006mm79 “4654 Watts15886 BTU's5902 Watts20150 BTU's
CRC-970-27272082mm82 “4833 Watts16497 BTU's6129 Watts20925 BTU's
CRC-970-28282158mm85 “5012 Watts17108 BTU's6356 Watts21700 BTU's
CRC-970-29292234mm88 “5191 Watts17719 BTU's6583 Watts22475 BTU's
CRC-970-30302310mm91 “5370 Watts18330 BTU's6810 Watts23250 BTU's
CRC-970-31312386mm93 7/8 “5549 Watts18941 BTU's7037 Watts24025 BTU's
CRC-970-32322462mm96 7/8 “5728 Watts19552 BTU's7264 Watts24800 BTU's
CRC-970-33332538mm99 7/8 “5907 Watts20163 BTU's7491 Watts25575 BTU's
CRC-970-34342614mm102 7/8 “6086 Watts20774 BTU's7718 Watts26350 BTU's
CRC-970-35352690mm105 7/8 “6265 Watts21385 BTU's7945 Watts27125 BTU's
CRC-970-36362766mm108 7/8 “6444 Watts21996 BTU's8172 Watts27900 BTU's
CRC-970-37372842mm111 7/8 “6623 Watts22607 BTU's8399 Watts28675 BTU's
Find a Stockist

CRANE® Ornate III radiators are supplied exclusively through approved stockists.

Find your nearest stockist or contact us for assistance.

CRANE® Ornate III 970mm

All CRANE® radiators are cast in Europe and assembled in Britain, with strict quality control at every stage.

  • Lifetime Guarantee
  • Height: 961mm
  • Depth: 225mm
  • 227 Watts per section
  • 775 BTU per section
  • High output option for large rooms
  • Cast in Europe
  • Assembled and tested in the United Kingdom
  • Delivered assembled to your exact requirements
  • Available in painted or polished finishes
