CRANE� Ornate III Cast Iron Radiators � 470mm

Description

Cast iron radiators from the CRANE^® Ornate III series are available in two complementary heights. The 470mm Ornate III is the compact option � designed for lower sills and tighter spaces where you still want true period character.

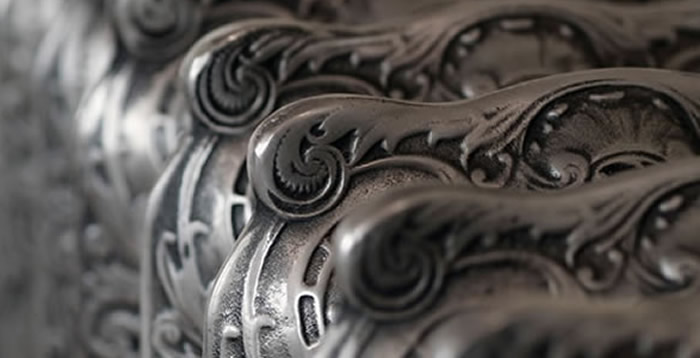

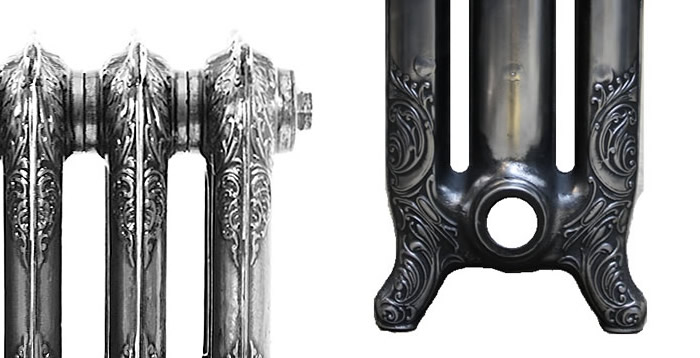

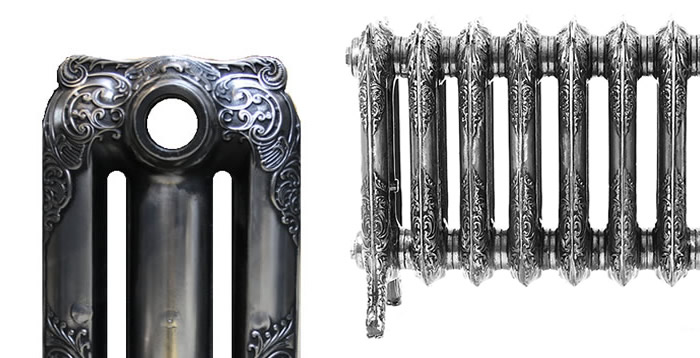

The Ornate III casting features elegant Edwardian-era decoration with crisp, detailed moulding. Stylised foliage flows from the centre of each section down to the feet and across the shoulders, creating a distinctive silhouette that looks at home in grand properties and refined contemporary interiors alike.

All CRANE^® radiators are assembled and pressure tested in the United Kingdom and supplied with a Lifetime Guarantee.

Customisation and Finishes

CRANE^® Cast Iron Radiators are cast in Europe and assembled and finished at our UK facility.

Choose from any RAL colour, a wide range of specialist painted finishes, or a polished finish from satin to near mirror.

Technical Data

CRANE Ornate III 470mm cast iron radiators diagram

Section Height A	470mm
BTU's per section	�
Watts per section	�
Radiator Depth B	225mm
Section Length C	76mm

Carbon (C)	3.40%-3.85%
Silicon (Si)	1.80%-2.10%
Sulfur (S)	<0.06%
Phosphorus (P)	<0.10%
Manganese (Mn)	0.40%-0.85%
Chromium (Cr)	<0.07%
Copper (Cu)	<0.08%
Tensile Variance	<0.01%
Section Width Tolerance	<0.1%
Section Height Tolerance	<0.1%
Section Perpendicular Tolerance	<0.1%
Ferrite Microstructure %	<0.190%
Peralite Microstructure %	<0.190%
Cementite Microstructure %	<0.190%
Nodule Microstructure adet/mm	100-125
Nodule Maximum size Q/mm	8
Micro Nodularity %	80% +
Hardness (HB)	150-250
Tensile Strength N/mm	400 +
Elongation	3+
Sand Tempreture on Casting	20°c-45°c
Casting Humidity	3.2%-4.0%
Wet Compressive Strength	2100-2500gr/cm sq
Tensile Strength	20-30gr/cm sq
Shatter Index	67-77%
Volatile Inclusions	<0.001%

All cast iron radiator sections are tested for vertical and horizontal tolerances.

Specification Table

CRANE Ornate III 470mm Cast Iron Radiators

Radiator Height:	470mm	(18 1/2 �)
Radiator Depth:	225mm	(8 7/8 �)

Product	Sections	Radiator Width (L)		Heat Output (?T=50)		Heat Output (?T=60)
Code	(No.)	mm	Inches	Watts	BTU's	Watts	BTU's
CRC-470-03	3	258mm	10 1/8 �	�	�	�	�
CRC-470-04	4	334mm	13 1/8 �	�	�	�	�
CRC-470-05	5	410mm	16 1/8 �	�	�	�	�
CRC-470-06	6	486mm	19 1/8 �	�	�	�	�
CRC-470-07	7	562mm	22 1/8 �	�	�	�	�
CRC-470-08	8	638mm	25 1/8 �	�	�	�	�
CRC-470-09	9	714mm	28 1/8 �	�	�	�	�
CRC-470-10	10	790mm	31 1/8 �	�	�	�	�
CRC-470-11	11	866mm	34 1/8 �	�	�	�	�
CRC-470-12	12	942mm	37 1/8 �	�	�	�	�
CRC-470-13	13	1018mm	40 1/8 �	�	�	�	�
CRC-470-14	14	1094mm	43 1/8 �	�	�	�	�
CRC-470-15	15	1170mm	46 1/8 �	�	�	�	�
CRC-470-16	16	1246mm	49 �	�	�	�	�
CRC-470-17	17	1322mm	52 �	�	�	�	�
CRC-470-18	18	1398mm	55 �	�	�	�	�
CRC-470-19	19	1474mm	58 �	�	�	�	�
CRC-470-20	20	1550mm	61 �	�	�	�	�
CRC-470-21	21	1626mm	64 �	�	�	�	�
CRC-470-22	22	1702mm	67 �	�	�	�	�
CRC-470-23	23	1778mm	70 �	�	�	�	�
CRC-470-24	24	1854mm	73 �	�	�	�	�
CRC-470-25	25	1930mm	76 �	�	�	�	�
CRC-470-26	26	2006mm	79 �	�	�	�	�
CRC-470-27	27	2082mm	82 �	�	�	�	�
CRC-470-28	28	2158mm	85 �	�	�	�	�
CRC-470-29	29	2234mm	88 �	�	�	�	�
CRC-470-30	30	2310mm	91 �	�	�	�	�
CRC-470-31	31	2386mm	93 7/8 �	�	�	�	�
CRC-470-32	32	2462mm	96 7/8 �	�	�	�	�
CRC-470-33	33	2538mm	99 7/8 �	�	�	�	�
CRC-470-34	34	2614mm	102 7/8 �	�	�	�	�
CRC-470-35	35	2690mm	105 7/8 �	�	�	�	�
CRC-470-36	36	2766mm	108 7/8 �	�	�	�	�
CRC-470-37	37	2842mm	111 7/8 �	�	�	�	�
