Six Column CRANE Cast Iron Radiators - 960mm height

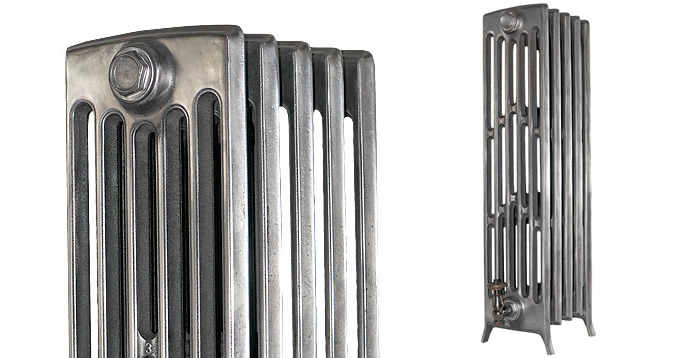

  • Top of 6 Column 960mm CRANE Cast Iron Radiators

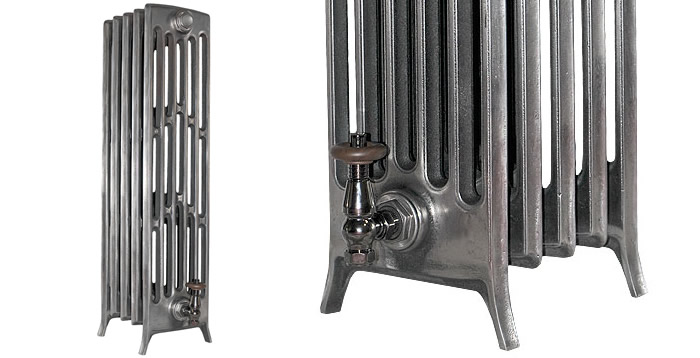

  • Legs of 6 Column 960mm CRANE Cast Iron Radiators

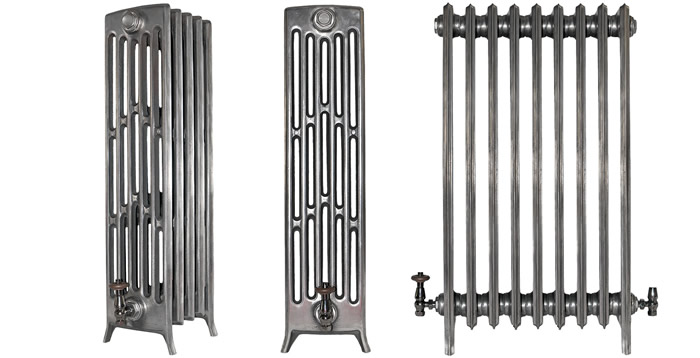

  • Profile of 6 Column 960mm CRANE Cast Iron Radiators
Description

Cast Iron Radiators from our popular CRANE 6 Column Series have a huge heat output. As the tallest in the range, the CRANE 6 Column 960mm (38 inches) delivers the largest heat output for a 6 column cast iron radiator in this traditional series.

CRANE 6 Column Cast Iron Radiators are a timeless design from the 1930's and are now available in 4 traditional heights. With clean crisp casting lines, an elegantly rounded smooth shoulder and bold splayed feet - this is we believe the definitive 6 Column Cast Iron Radiator design. Don't settle for any imitation or anything less than a CRANE 6 Column Cast Iron Radiator, cast in Europe and finished in one of our many beautiful paints or polished finishes.

All CRANE Cast Iron Radiators are designed to complement each other and are available in a range of traditional heights, sizes and finishes.

Customisation and Finishes
Sanderson Paint

CRANE Cast Iron Radiators are all cast in Europe and assembled and finished at our state of the art factory in Britain.

CRANE Radiators are available painted in any RAL Colour, we prefer to use Traditional Sanderson paint on CRANE Cast Iron Radiators.

Alternatively, CRANE Radiators look fantastic when polished to a satin finish or near mirror finish.

Technical Data

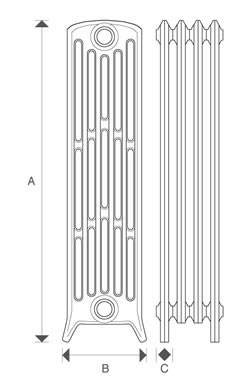

6 column 960mm CRANE cast iron radiators diagram
Section Height A960mm
BTU's per section795
Watts per section233
Radiator Depth B221mm
Section Length C60mm
Carbon (C)3.40%-3.85%
Silicon (Si)1.80%-2.10%
Sulfur (S)<0.06%
Phosphorus (P)<0.10%
Manganese (Mn)0.40%-0.85%
Chromium (Cr)<0.07%
Copper (Cu)<0.08%
Tensile Variance<0.01%
Section Width Tolerance<0.1%
Section Height Tolerance<0.1%
Section Perpendicular Tolerance<0.1%
Ferrite Microstructure %<0.190%
Peralite Microstructure %<0.190%
Cementite Microstructure %<0.190%
Nodule Microstructure adet/mm100-125
Nodule Maximum size Q/mm8
Micro Nodularity %80% +
Hardness (HB)150-250
Tensile Strength N/mm400 +
Elongation3+
Sand Tempreture on Casting20°c-45°c
Casting Humidity3.2%-4.0%
Wet Compressive Strength2100-2500gr/cm sq
Tensile Strength20-30gr/cm sq
Shatter Index67-77%
Volatile Inclusions<0.001%

All Cast Iron Radiator sections are tested for vertical and horizontal tolerances.
Specification Table

CRANE 6 Column 960mm Cast Iron Radiator

Radiator Height:

960mm

(37 3/4 “)

Radiator Depth:

221mm

(8 3/4 “)

Product Sections Radiator Width (L) Heat Output (ΔT=50) Heat Output (ΔT=60)
Code (No.) mm Inches Watts BTU's Watts BTU's
C6C-960-033210mm8 1/4 “552 Watts1884 BTU's699 Watts2385 BTU's
C6C-960-044270mm10 5/8 “736 Watts2512 BTU's932 Watts3180 BTU's
C6C-960-055330mm13 “920 Watts3140 BTU's1165 Watts3975 BTU's
C6C-960-066390mm15 3/8 “1104 Watts3768 BTU's1398 Watts4770 BTU's
C6C-960-077450mm17 3/4 “1288 Watts4396 BTU's1631 Watts5565 BTU's
C6C-960-088510mm20 1/8 “1472 Watts5024 BTU's1864 Watts6360 BTU's
C6C-960-099570mm22 1/2 “1656 Watts5652 BTU's2097 Watts7155 BTU's
C6C-960-1010630mm24 3/4 “1840 Watts6280 BTU's2330 Watts7950 BTU's
C6C-960-1111690mm27 1/8 “2024 Watts6908 BTU's2563 Watts8745 BTU's
C6C-960-1212750mm29 1/2 “2208 Watts7536 BTU's2796 Watts9540 BTU's
C6C-960-1313810mm31 7/8 “2392 Watts8164 BTU's3029 Watts10335 BTU's
C6C-960-1414870mm34 1/4 “2576 Watts8792 BTU's3262 Watts11130 BTU's
C6C-960-1515930mm36 5/8 “2760 Watts9420 BTU's3495 Watts11925 BTU's
C6C-960-1616990mm39 “2944 Watts10048 BTU's3728 Watts12720 BTU's
C6C-960-17171050mm41 3/8 “3128 Watts10676 BTU's3961 Watts13515 BTU's
C6C-960-18181110mm43 3/4 “3312 Watts11304 BTU's4194 Watts14310 BTU's
C6C-960-19191170mm46 1/8 “3496 Watts11932 BTU's4427 Watts15105 BTU's
C6C-960-20201230mm48 3/8 “3680 Watts12560 BTU's4660 Watts15900 BTU's
C6C-960-21211290mm50 3/4 “3864 Watts13188 BTU's4893 Watts16695 BTU's
C6C-960-22221350mm53 1/8 “4048 Watts13816 BTU's5126 Watts17490 BTU's
C6C-960-23231410mm55 1/2 “4232 Watts14444 BTU's5359 Watts18285 BTU's
C6C-960-24241470mm57 7/8 “4416 Watts15072 BTU's5592 Watts19080 BTU's
C6C-960-25251530mm60 1/4 “4600 Watts15700 BTU's5825 Watts19875 BTU's
C6C-960-26261590mm62 5/8 “4784 Watts16328 BTU's6058 Watts20670 BTU's
C6C-960-27271650mm65 “4968 Watts16956 BTU's6291 Watts21465 BTU's
C6C-960-28281710mm67 3/8 “5152 Watts17584 BTU's6524 Watts22260 BTU's
C6C-960-29291770mm69 5/8 “5336 Watts18212 BTU's6757 Watts23055 BTU's
C6C-960-30301830mm72 “5520 Watts18840 BTU's6990 Watts23850 BTU's
C6C-960-31311890mm74 3/8 “5704 Watts19468 BTU's7223 Watts24645 BTU's
C6C-960-32321950mm76 3/4 “5888 Watts20096 BTU's7456 Watts25440 BTU's
C6C-960-33332010mm79 1/8 “6072 Watts20724 BTU's7689 Watts26235 BTU's
C6C-960-34342070mm81 1/2 “6256 Watts21352 BTU's7922 Watts27030 BTU's
C6C-960-35352130mm83 7/8 “6440 Watts21980 BTU's8155 Watts27825 BTU's
C6C-960-36362190mm86 1/4 “6624 Watts22608 BTU's8388 Watts28620 BTU's
C6C-960-37372250mm88 5/8 “6808 Watts23236 BTU's8621 Watts29415 BTU's
Find a Stockist

We have stockists all over the world. To find a European list of stockists click here.

Alternatively contact us using this website and we will direct you to a local retailer.

CRANE Radiators

All CRANE Radiators are cast in Europe and assembled in Britain. We have the strictest quality control in the industry and no other supplier of traditional cast iron radiators only works with European foundries.

  • Height 960mm
  • Depth 221mm
  • 233 Watts Output per section
  • 795 BTU's Output per section
  • Original timeless design
  • Cast in Europe
  • Assembled and finished in Britain
  • Foundry is ISO14001 emissions compliant
  • Certified Ethical Iron
  • Delivered Assembled to your exact requirements
  • Available in a range of finishes
  • Certified Carbon Neutral
Find a Stockist
Download the spec sheet of this cast iron radiator Download Spec Sheet of this Cast Iron Radiator
