Six Column CRANE Cast Iron Radiators - 760mm height

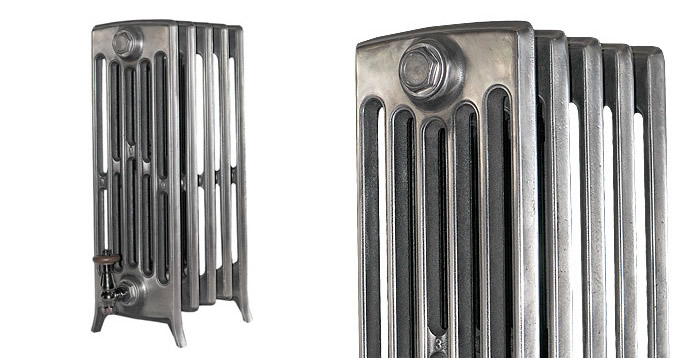

  • Top of 6 Column 760mm CRANE Cast Iron Radiators

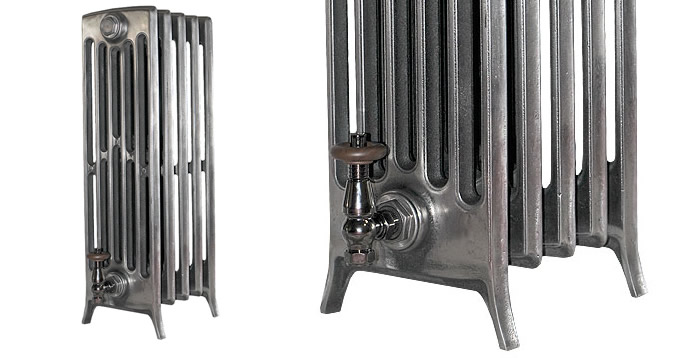

  • Legs of 6 Column 760mm CRANE Cast Iron Radiators

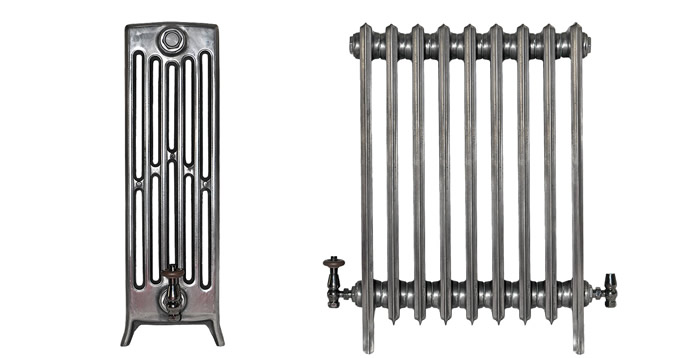

  • Profile of 6 Column 760mm CRANE Cast Iron Radiators
Description

6 Column CRANE Cast Iron Radiators at 760mm (30 inches) tall are a popular choice in a wide range of settings. These high heat output CRANE Cast Iron Radiators are available in 4 historic heights.

CRANE 6 Column Cast Iron Radiators are a timeless design from the 1930's. With clean crisp casting lines, an elegantly rounded smooth shoulder and bold splayed feet - this is we believe the definitive 6 Column Cast Iron Radiator design. Don't settle for any imitation or anything less than a CRANE 6 Column Cast Iron Radiator, cast in Europe and finished in one of our many beautiful paints or polished finishes.

All CRANE Cast Iron Radiators are designed to complement each other and are available in a range of traditional heights, sizes and finishes.

Customisation and Finishes
Sanderson Paint

CRANE Cast Iron Radiators are all cast in Europe and assembled and finished at our state of the art factory in Britain.

CRANE Radiators are available painted in any RAL Colour, we prefer to use Traditional Sanderson paint on CRANE Cast Iron Radiators.

Alternatively, CRANE Radiators look fantastic when polished to a satin finish or near mirror finish.

Technical Data

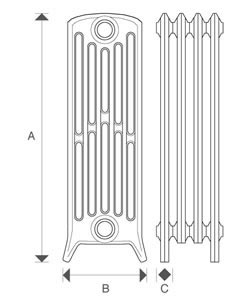

6 column 760mm CRANE cast iron radiators diagram
Section Height A762mm
BTU's per section638
Watts per section187
Radiator Depth B221mm
Section Length C60mm
Carbon (C)3.40%-3.85%
Silicon (Si)1.80%-2.10%
Sulfur (S)<0.06%
Phosphorus (P)<0.10%
Manganese (Mn)0.40%-0.85%
Chromium (Cr)<0.07%
Copper (Cu)<0.08%
Tensile Variance<0.01%
Section Width Tolerance<0.1%
Section Height Tolerance<0.1%
Section Perpendicular Tolerance<0.1%
Ferrite Microstructure %<0.190%
Peralite Microstructure %<0.190%
Cementite Microstructure %<0.190%
Nodule Microstructure adet/mm100-125
Nodule Maximum size Q/mm8
Micro Nodularity %80% +
Hardness (HB)150-250
Tensile Strength N/mm400 +
Elongation3+
Sand Tempreture on Casting20°c-45°c
Casting Humidity3.2%-4.0%
Wet Compressive Strength2100-2500gr/cm sq
Tensile Strength20-30gr/cm sq
Shatter Index67-77%
Volatile Inclusions<0.001%

All Cast Iron Radiator sections are tested for vertical and horizontal tolerances.
Specification Table

CRANE 6 Column 760mm Cast Iron Radiator

Radiator Height:

762mm

(30 “)

Radiator Depth:

221mm

(8 3/4 “)

Product Sections Radiator Width (L) Heat Output (ΔT=50) Heat Output (ΔT=60)
Code (No.) mm Inches Watts BTU's Watts BTU's
C6C-760-033210mm8 1/4 “444 Watts1515 BTU's561 Watts1914 BTU's
C6C-760-044270mm10 5/8 “592 Watts2020 BTU's748 Watts2552 BTU's
C6C-760-055330mm13 “740 Watts2525 BTU's935 Watts3190 BTU's
C6C-760-066390mm15 3/8 “888 Watts3030 BTU's1122 Watts3828 BTU's
C6C-760-077450mm17 3/4 “1036 Watts3535 BTU's1309 Watts4466 BTU's
C6C-760-088510mm20 1/8 “1184 Watts4040 BTU's1496 Watts5104 BTU's
C6C-760-099570mm22 1/2 “1332 Watts4545 BTU's1683 Watts5742 BTU's
C6C-760-1010630mm24 3/4 “1480 Watts5050 BTU's1870 Watts6380 BTU's
C6C-760-1111690mm27 1/8 “1628 Watts5555 BTU's2057 Watts7018 BTU's
C6C-760-1212750mm29 1/2 “1776 Watts6060 BTU's2244 Watts7656 BTU's
C6C-760-1313810mm31 7/8 “1924 Watts6565 BTU's2431 Watts8294 BTU's
C6C-760-1414870mm34 1/4 “2072 Watts7070 BTU's2618 Watts8932 BTU's
C6C-760-1515930mm36 5/8 “2220 Watts7575 BTU's2805 Watts9570 BTU's
C6C-760-1616990mm39 “2368 Watts8080 BTU's2992 Watts10208 BTU's
C6C-760-17171050mm41 3/8 “2516 Watts8585 BTU's3179 Watts10846 BTU's
C6C-760-18181110mm43 3/4 “2664 Watts9090 BTU's3366 Watts11484 BTU's
C6C-760-19191170mm46 1/8 “2812 Watts9595 BTU's3553 Watts12122 BTU's
C6C-760-20201230mm48 3/8 “2960 Watts10100 BTU's3740 Watts12760 BTU's
C6C-760-21211290mm50 3/4 “3108 Watts10605 BTU's3927 Watts13398 BTU's
C6C-760-22221350mm53 1/8 “3256 Watts11110 BTU's4114 Watts14036 BTU's
C6C-760-23231410mm55 1/2 “3404 Watts11615 BTU's4301 Watts14674 BTU's
C6C-760-24241470mm57 7/8 “3552 Watts12120 BTU's4488 Watts15312 BTU's
C6C-760-25251530mm60 1/4 “3700 Watts12625 BTU's4675 Watts15950 BTU's
C6C-760-26261590mm62 5/8 “3848 Watts13130 BTU's4862 Watts16588 BTU's
C6C-760-27271650mm65 “3996 Watts13635 BTU's5049 Watts17226 BTU's
C6C-760-28281710mm67 3/8 “4144 Watts14140 BTU's5236 Watts17864 BTU's
C6C-760-29291770mm69 5/8 “4292 Watts14645 BTU's5423 Watts18502 BTU's
C6C-760-30301830mm72 “4440 Watts15150 BTU's5610 Watts19140 BTU's
C6C-760-31311890mm74 3/8 “4588 Watts15655 BTU's5797 Watts19778 BTU's
C6C-760-32321950mm76 3/4 “4736 Watts16160 BTU's5984 Watts20416 BTU's
C6C-760-33332010mm79 1/8 “4884 Watts16665 BTU's6171 Watts21054 BTU's
C6C-760-34342070mm81 1/2 “5032 Watts17170 BTU's6358 Watts21692 BTU's
C6C-760-35352130mm83 7/8 “5180 Watts17675 BTU's6545 Watts22330 BTU's
C6C-760-36362190mm86 1/4 “5328 Watts18180 BTU's6732 Watts22968 BTU's
C6C-760-37372250mm88 5/8 “5476 Watts18685 BTU's6919 Watts23606 BTU's
Find a Stockist

We have stockists all over the world. To find a European list of stockists click here.

Alternatively contact us using this website and we will direct you to a local retailer.

CRANE Radiators

All CRANE Radiators are cast in Europe and assembled in Britain. We have the strictest quality control in the industry and no other supplier of traditional cast iron radiators only works with European foundries.

  • Height 760mm
  • Depth 221mm
  • 187 Watts Output per section
  • 638 BTU's Output per section
  • Original timeless design
  • Cast in Europe
  • Assembled and finished in Britain
  • Foundry is ISO14001 emissions compliant
  • Certified Ethical Iron
  • Delivered Assembled to your exact requirements
  • Available in a range of finishes
  • Certified Carbon Neutral
Find a Stockist
Download the spec sheet of this cast iron radiator Download Spec Sheet of this Cast Iron Radiator
