Six Column CRANE Cast Iron Radiators - 660mm height

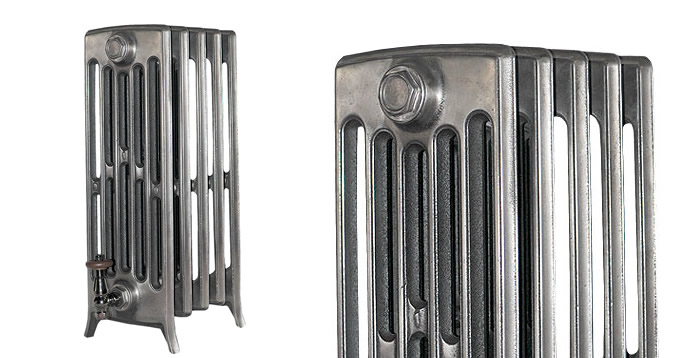

  • Top of 6 Column 660mm CRANE Cast Iron Radiators

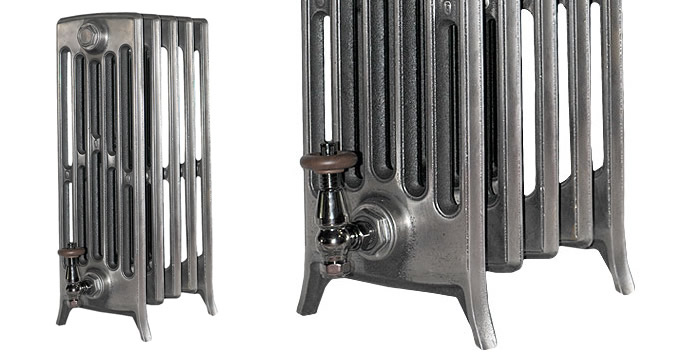

  • Legs of 6 Column 660mm CRANE Cast Iron Radiators

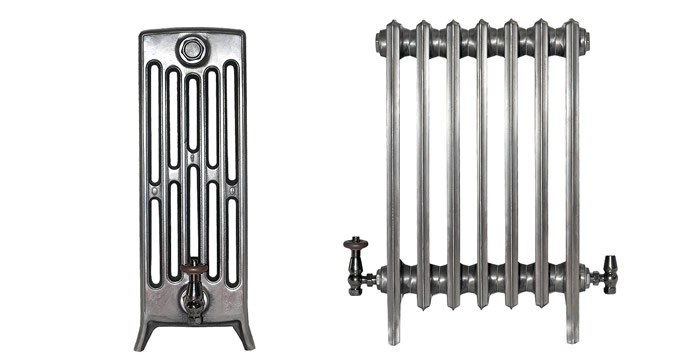

  • Profile of 6 Column 660mm CRANE Cast Iron Radiators
Description

Six Column Cast Iron Radiators from CRANE are available in 4 traditional heights. 6 Column 660mm CRANE Cast Iron Radiators have been assembled and manufactured for decades at this popular height.

CRANE 6 Column Cast Iron Radiators are a timeless design from the 1930's. With clean crisp casting lines, an elegantly rounded smooth shoulder and bold splayed feet - this is we believe the definitive 6 Column Cast Iron Radiator design. Don't settle for any imitation or anything less than a CRANE 6 Column Cast Iron Radiator, cast in Europe and finished in one of our many beautiful paints or polished finishes.

All CRANE Cast Iron Radiators are designed to complement each other and are available in a range of traditional heights, sizes and finishes.

Technical Data

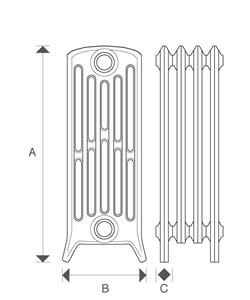

6 column 660mm CRANE cast iron radiators diagram
Section Height A655mm
BTU's per section546
Watts per section160
Radiator Depth B221mm
Section Length C60mm
Carbon (C)3.40%-3.85%
Silicon (Si)1.80%-2.10%
Sulfur (S)<0.06%
Phosphorus (P)<0.10%
Manganese (Mn)0.40%-0.85%
Chromium (Cr)<0.07%
Copper (Cu)<0.08%
Tensile Variance<0.01%
Section Width Tolerance<0.1%
Section Height Tolerance<0.1%
Section Perpendicular Tolerance<0.1%
Ferrite Microstructure %<0.190%
Peralite Microstructure %<0.190%
Cementite Microstructure %<0.190%
Nodule Microstructure adet/mm100-125
Nodule Maximum size Q/mm8
Micro Nodularity %80% +
Hardness (HB)150-250
Tensile Strength N/mm400 +
Elongation3+
Sand Tempreture on Casting20°c-45°c
Casting Humidity3.2%-4.0%
Wet Compressive Strength2100-2500gr/cm sq
Tensile Strength20-30gr/cm sq
Shatter Index67-77%
Volatile Inclusions<0.001%

All Cast Iron Radiator sections are tested for vertical and horizontal tolerances.
Specification Table

CRANE 6 Column 660mm Cast Iron Radiator

Radiator Height:

655mm

(25 3/4 “)

Radiator Depth:

221mm

(8 3/4 “)

Product Sections Radiator Width (L) Heat Output (ΔT=50) Heat Output (ΔT=60)
Code (No.) mm Inches Watts BTU's Watts BTU's
C6C-660-033210mm8 1/4 “381 Watts1299 BTU's480 Watts1638 BTU's
C6C-660-044270mm10 5/8 “508 Watts1732 BTU's640 Watts2184 BTU's
C6C-660-055330mm13 “635 Watts2165 BTU's800 Watts2730 BTU's
C6C-660-066390mm15 3/8 “762 Watts2598 BTU's960 Watts3276 BTU's
C6C-660-077450mm17 3/4 “889 Watts3031 BTU's1120 Watts3822 BTU's
C6C-660-088510mm20 1/8 “1016 Watts3464 BTU's1280 Watts4368 BTU's
C6C-660-099570mm22 1/2 “1143 Watts3897 BTU's1440 Watts4914 BTU's
C6C-660-1010630mm24 3/4 “1270 Watts4330 BTU's1600 Watts5460 BTU's
C6C-660-1111690mm27 1/8 “1397 Watts4763 BTU's1760 Watts6006 BTU's
C6C-660-1212750mm29 1/2 “1524 Watts5196 BTU's1920 Watts6552 BTU's
C6C-660-1313810mm31 7/8 “1651 Watts5629 BTU's2080 Watts7098 BTU's
C6C-660-1414870mm34 1/4 “1778 Watts6062 BTU's2240 Watts7644 BTU's
C6C-660-1515930mm36 5/8 “1905 Watts6495 BTU's2400 Watts8190 BTU's
C6C-660-1616990mm39 “2032 Watts6928 BTU's2560 Watts8736 BTU's
C6C-660-17171050mm41 3/8 “2159 Watts7361 BTU's2720 Watts9282 BTU's
C6C-660-18181110mm43 3/4 “2286 Watts7794 BTU's2880 Watts9828 BTU's
C6C-660-19191170mm46 1/8 “2413 Watts8227 BTU's3040 Watts10374 BTU's
C6C-660-20201230mm48 3/8 “2540 Watts8660 BTU's3200 Watts10920 BTU's
C6C-660-21211290mm50 3/4 “2667 Watts9093 BTU's3360 Watts11466 BTU's
C6C-660-22221350mm53 1/8 “2794 Watts9526 BTU's3520 Watts12012 BTU's
C6C-660-23231410mm55 1/2 “2921 Watts9959 BTU's3680 Watts12558 BTU's
C6C-660-24241470mm57 7/8 “3048 Watts10392 BTU's3840 Watts13104 BTU's
C6C-660-25251530mm60 1/4 “3175 Watts10825 BTU's4000 Watts13650 BTU's
C6C-660-26261590mm62 5/8 “3302 Watts11258 BTU's4160 Watts14196 BTU's
C6C-660-27271650mm65 “3429 Watts11691 BTU's4320 Watts14742 BTU's
C6C-660-28281710mm67 3/8 “3556 Watts12124 BTU's4480 Watts15288 BTU's
C6C-660-29291770mm69 5/8 “3683 Watts12557 BTU's4640 Watts15834 BTU's
C6C-660-30301830mm72 “3810 Watts12990 BTU's4800 Watts16380 BTU's
C6C-660-31311890mm74 3/8 “3937 Watts13423 BTU's4960 Watts16926 BTU's
C6C-660-32321950mm76 3/4 “4064 Watts13856 BTU's5120 Watts17472 BTU's
C6C-660-33332010mm79 1/8 “4191 Watts14289 BTU's5280 Watts18018 BTU's
C6C-660-34342070mm81 1/2 “4318 Watts14722 BTU's5440 Watts18564 BTU's
C6C-660-35352130mm83 7/8 “4445 Watts15155 BTU's5600 Watts19110 BTU's
C6C-660-36362190mm86 1/4 “4572 Watts15588 BTU's5760 Watts19656 BTU's
C6C-660-37372250mm88 5/8 “4699 Watts16021 BTU's5920 Watts20202 BTU's
Find a Stockist

We have stockists all over the world. To find a European list of stockists click here.

Alternatively contact us using this website and we will direct you to a local retailer.

CRANE Radiators

All CRANE Radiators are cast in Europe and assembled in Britain. We have the strictest quality control in the industry and no other supplier of traditional cast iron radiators only works with European foundries.

  • Height 660mm
  • Depth 221mm
  • 160 Watts Output per section
  • 546 BTU's Output per section
  • Original timeless design
  • Cast in Europe
  • Assembled and finished in Britain
  • Foundry is ISO14001 emissions compliant
  • Certified Ethical Iron
  • Delivered Assembled to your exact requirements
  • Available in a range of finishes
  • Certified Carbon Neutral
Find a Stockist
Download the spec sheet of this cast iron radiator Download Spec Sheet of this Cast Iron Radiator
